Solar fountain aerator is composed of photovoltaic panels, fountain system, intelligent control system, battery pack (optional), landscape lights (optional) and so on.
Scope of application: landscape ponds, parks, inland rivers, etc. to improve water quality, landscaping;
Oxygenation of fish ponds, higher dust, good oxygenation effect, oxygenation of fish ponds, to prevent fish from floating dead, dead fish flood ponds, to give conditions for high-density fish farming, so as to achieve high and stable yield, improve economic efficiency;
Promote water circulation, pleasing to the eye, the circulation effect is good, suspended in deep water, the oxygenator inhalation of the lower oxygen-poor water and then from the nozzle to form a fountain sprayed into the air, dispersed into droplets of varying sizes, increasing the abundance of dissolved oxygen;
Purify the water quality, explode the exhaust gas, reduce fish disease, promote the growth of fish and shrimp, and can stir the water, adjust the upper and lower water temperature.
| Model | Power supply | Power | Speed | Weight | Oxygenation capacity | Recycled water volume | Inductive flow | Splash size | Center column |
| （V） | （KW） | （/min） | （KG） | （kg O²/H） | （m³/h） | （m³/d） | （H*W/m） | （M） | |
| ZL-CFA750 | 220/380 | 0.75 | 2850 | 19 | 0.5-0.6 | 70 | 1500 | 0.8*2 | 4 |
| ZL-CFA1200 | 380 | 1.2 | 2850 | 20.5 | 0.6-0.8 | 95 | 2400 | 1.6*3.5 | 6 |
| ZL-CFA1500 | 380 | 1.5 | 2850 | 22.5 | 0.9-1.1 | 120 | 2800 | 1.8*4 | 6 |
| ZL-CFA2200 | 380 | 2.2 | 2850 | 26.5 | 1.3-1.6 | 190 | 3700 | 2.5*7 | 6.5 |
| ZL-CFA3000 | 380 | 3.0 | 2850 | 3.05 | 1.7-2.1 | 230 | 4100 | 3.5*9 | 6.5 |
| ZL-CFA4000 | 380 | 4.0 | 2850 | 30.5 | 2.2-2.7 | 255 | 4850 | 3.8*11 | 7 |
Solar Aerator Advantages
1.Save power and save money（Solar renewable, one-time investment with a service life of up to 10 years）
2.One-piece construction, easy to install（Small size, drift mounting, no installation foundation required）
3.Easy to fix, move as needed（Integral floating, move position on demand, water level fluctuations have no effect）
4.Low maintenance costs（Components are not easily damaged and maintenance intervals can be greatly reduced）
5.Oxygenation and beautification 2 in 1（Flow circulation, open impeller, water flower style, can be selected according to the environment, to achieve the effect of oxygenation and landscaping.）

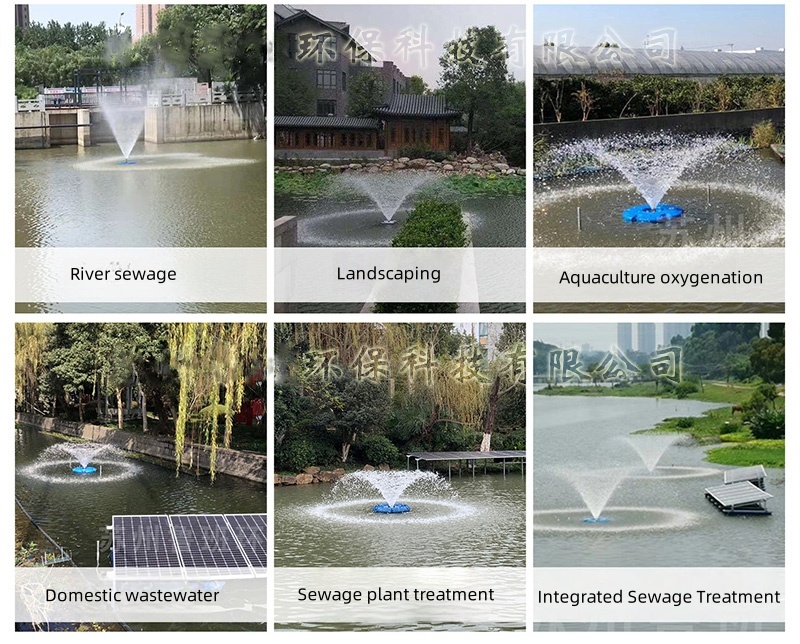

Application scenario
Fountain aerator is suitable for: golf courses, ecological landscape lakes, rivers, ponds and private courtyard ecological pools, ornamental fish ponds, etc., through the reoxygenation of the water body, water circulation, purification and maintenance of water quality; in addition, when the body action, it will lead to the water cycle to supply ecological rivers, lakes, the bottom layer of plant and animal growth of the oxygen required, and to improve and reduce the bottom mud.
Installation method
1.Integral cable fixing
2.Integrated anchor fixing
3.Integral Piling Fixing
4.Integral cantilever fixing
5.Split type fixing
